SR-71 Blackbird walk around

61-7976 was flight-delivered to the (then) Air Force Museum in March 1990, several months after the SR-71’s initial retirement. This aircraft had carried out the first operational Blackbird sortie by the USAF in March 1968 (after of course, the CIA’s A-12s); -7976 ultimately flew more operational missions than any other Blackbird.

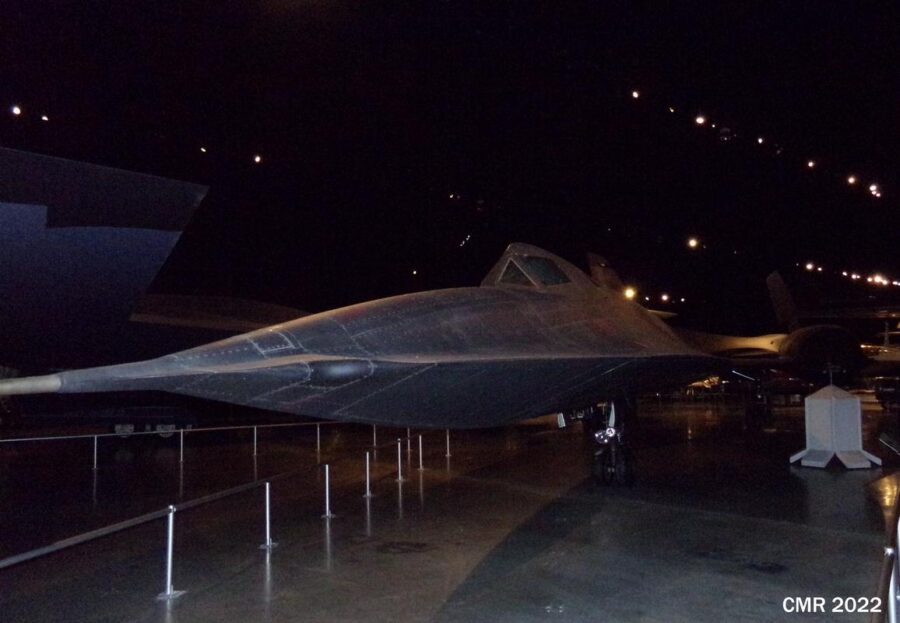

SR-71 at NMUSAF — Low-angle forward three-quarter view of Lockheed SR-71A Blackbird (s/n 61-7976) on display at the National Museum of the United States Air Force (NMUSAF). The photograph highlights the extended pitot boom, radical nose chine geometry, cockpit canopy profile, dual nose landing gear, and starboard engine nacelle structure in dramatic low-key gallery lighting.

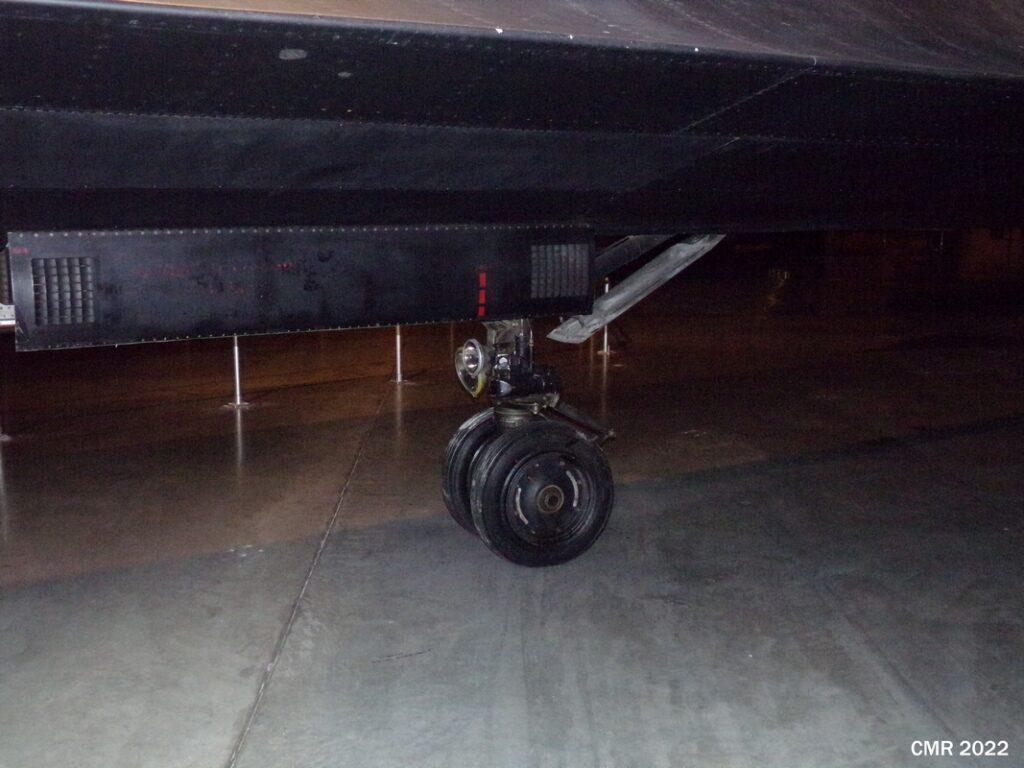

Closeup SR-71 Blackbird nose gear — Low-angle detail view of the nose landing gear assembly on Lockheed SR-71A Blackbird (s/n 61-7976) at the National Museum of the United States Air Force (NMUSAF), displaying the dual nose wheels, taxi light mount, strut linkage, drag brace, and lower forward fuselage chine structure.

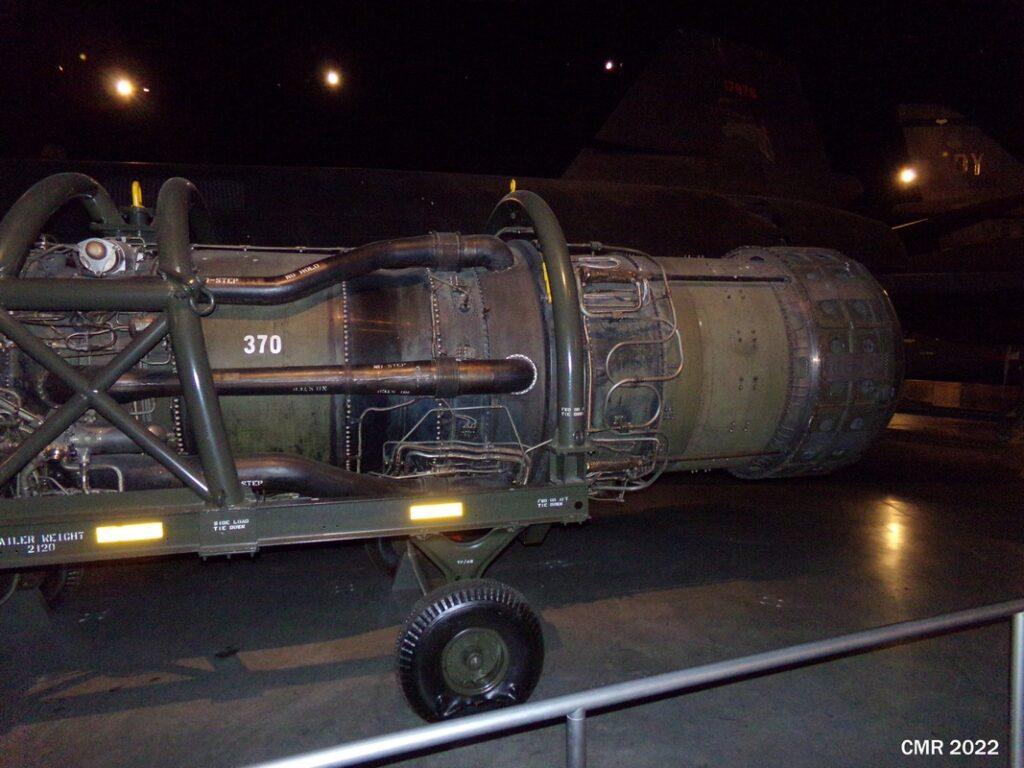

Aft end of Pratt & Whitney J58 on transport trailer. — Side profile detail of a Pratt & Whitney J58 (JT11D-20) continuous-bleed afterburning turbojet engine mounted on a transport dolly at the National Museum of the United States Air Force (NMUSAF), showing the bleed air bypass ducting, afterburner casing, variable exhaust nozzle, and the silhouette of a Lockheed SR-71 Blackbird (s/n 61-7976) in the background gallery.

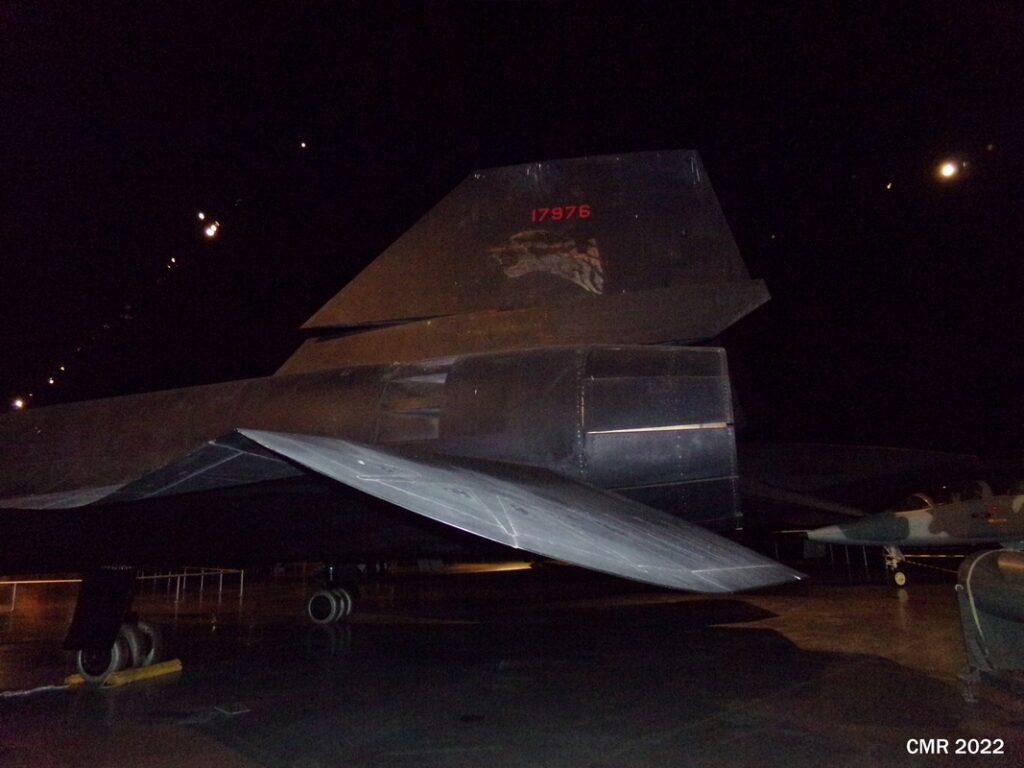

SR-71 exhaust and tail. — Port-side rear empennage and wing trailing edge detail of Lockheed SR-71A Blackbird (s/n 61-7976) on display at the National Museum of the United States Air Force (NMUSAF). The image highlights the inward-canted vertical stabilizer displaying red serial number 17976 and the “I’ll Be Seeing You” mascot art, the outboard wing chine elevon structure, engine nacelle fairing, and main gear assembly in museum lighting.

SR-71 reading:

Bob Archer “Giant Reach: The Lockheed SR-71 in East Anglia, 1974-90” American Cold War Stories

Robert Hopkins III Strategic Air Command in the UK: SAC Operations 1946-1992 Detailed coverage of SR-71 operations from England.

“SR-71 Shows Striking Similarities to YF-12A” Aviation Week & Space Technology December 14, 1964 p.20-21 5 photos

Richard G. O’Lone “First Operational SR-71 Delivered to SAC” Aviation Week & Space Technology January 17, 1966 p.33-34 3 photos

Photo: “Modified Boeing 747 in refueling tests with USAF/Lockheed SR-71” Aviation Week & Space Technology October 2, 1972 front cover

Photos (3): “Second SR-71 Deployed to England” AW&ST January 31, 1983 p.59

“SR-71 Sets Four Records During Retirement Flight” Aviation Week & Space Technology March 12, 1990 p.25

Michael O’Leary “Bad Day At Blackbird Central” Air Combat May 1990 p.42-53 15 photos

Brian Shul “Lasting Legacy” Journal of American Military Aviation V2 N1 p.16-17 4 photos

Christopher Michaels “Beyond The Horizon” Airpower September 1993 p.10-55 74 photos

“SR-71 permanently retired” World Air Power Journal Vol.35 Winter 1998 p.15

“Bye Bye Blackbird Again” USAF Yearbook 1998 p.50-52 11 photos
